Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YONJOU screw pump
  • Model Number: LQ3G screw pump
  • Theory: Rotary Pump
  • Structure: Screw Pump
  • Usage: Oil
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electricity
  • Pressure: High Pressure
  • Application: Bitumen/oil/high viscosity liquid
  • Material: C.I./S.S
  • Heat preservation: Yes
  • Maximum medium temperature: 350 celsius degree
  • Medium viscosity range: 1.2~100 E
  • Hear carrier: Steam,hot oil,hot water
  • color: green,gray,gold,yellow,red.black,blue.white
  • lifetime: more than 5 years
  • service: whole-life after-sale service
  • MOQ: 1 set screw pump
  • OEM: YES

Packaging & Delivery

Packaging Details standard export plywood case per rotary screw pump
weight:120kg~1200kg per different high viscosity triple screw asphalt bitumen pump, screw pump price, screw pump
Delivery Time 7-15 days

High Viscosity Triple Screw Asphalt Bitumen Screw Pump Price

Product Description



 Summarize:

1. High Viscosity Triple Screw Asphalt Bitumen Screw Pump with unique design of double jacket casing, can transmit heavy oil without particle, non-corrosive oil.small plusation, stable capacity, low noise, high efficiency.

2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.

3. Operating Principle: It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.

4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.







Product details:

Working Principle:Three Screw Heavy Duty Pump (One main, two driven screws)
Main applications:Heavy Oil, bitumen, viscous fluids
Driver:Electric motor, diesel motor.
Power Specs:220V, 240V, 380V, 400V, 415V, 440V, 460V,  50hz/60hz
Max. permissible fluid temperature:350°C
Type of connection:Flange, Thread, Quick Coupled.
Installation position:Horizontal
Casing/Inner parts material:Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:Mechanical seal
Maximum viscosity:1000CST
Maximum drive rating(motor Power):132 kW    (177hp)
Maximum caliber:6inch    (150mm)
Maximum discharge-side pressure:2.5mpa   (25bar) (Head Range)
Flow rate range:0.6-120 m³/h   (10-2010l/m)

Performance Data:

 ModelCapacity  (m3/min)PressureSpeedKW Suction head
m3/hL/minMPar/minShaft powermotor powerm
45× 3-362.8460.69500.81.15
4.2700.6145011.55
45× 2-464.2700.695011.55
14233414504.35.55
62× 2-438.58143.40.69502.0635
13.1218.90.614503.154
62× 2-469.81630.89502.945
25417114508.511
80× 2-4523.1386.319508.6115
35.7594.51145013.115
80× 2-5126.9448.3195010.5155
41684.1114501618.5
90× 2-3624.2403.50.69505.527.55.5
36.1602.4114501315
90× 2-3627.5457.6195010.2155.5
41.9698.51145015.518.5
90× 2-4634566.70.89509.7115.5
51.4856.11145018.622
100× 2-4672.712120.695016.518.55.5
71.211871145025.530
100× 2-5155.7928.6195020.8305.5
851417.21145031.837
110× 2-4658.9951.7195021.8305.5
94.615771145033.945
120× 2-4265.41090195024.5305.5
10517601145038.245
120× 2-4679.613270.695017.8225.5
12320591145044.155
150× 2-461542582195054.575

5.5

236.5

3942.21145082.290





This pump with heat-preserving jacket

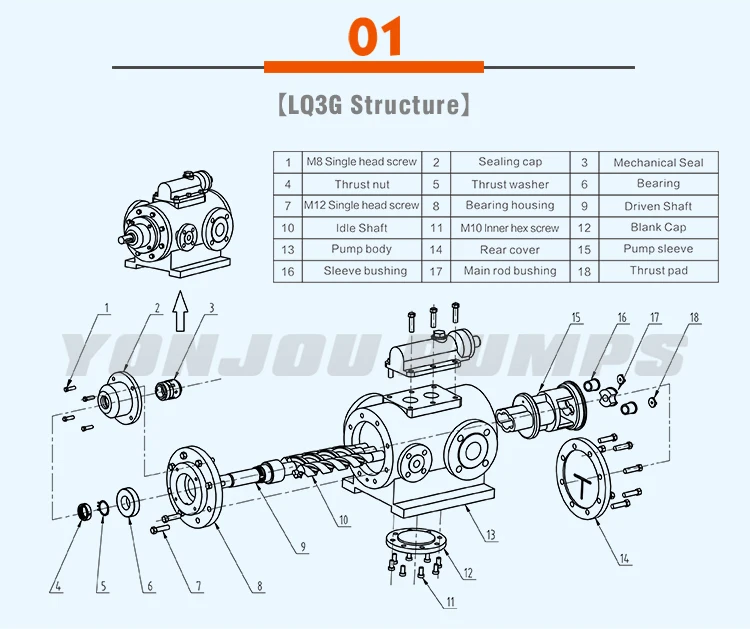

>>>Assembly





>>>Different Drive---not only electric motor, also with be with Diesel Engine drive.



 >>>Using in our client's company
