YONJOU LQ3G Double Jacket Three Screw Pump/Heat Insulation Jacket Asphalt Bitumen Pump

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Screw Pump
Maximum Head:
1.6 Mpa
Maximum Flow Rate:
240 m3/h
Horsepower:
1.5 ~ 90 kW
Lead Time:
Quantity(Sets) 1 - 1 2 - 7 8 - 30 >30
Est. Time(days) 7 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
YONJOU
Model Number:
LQ3G
Place of Origin:
Zhejiang, China
Pressure:
Low Pressure
Structure:
SCREW PUMP
Material:
Cast Iron, 40Cr Screw, SS304
Certificate:
CE, ISO
Warranty:
1 Year without Spare Parts
Lead time:
7~30 Days
Package:
International Standard Plywood Case
Payment:
T/T, LC, VISA
Shipment:
By Sea, By Air, By Express, By Truck, By Train
OEM:
YES
QC:
YES
Testing:
YES
Usage:
High Viscosity Liquid, Bitumen, Asphalt
Application:
Petroleum Industry, Road Construction
Power:
Electric
Supply Ability
Supply Ability:
1000 Set/Sets per Month

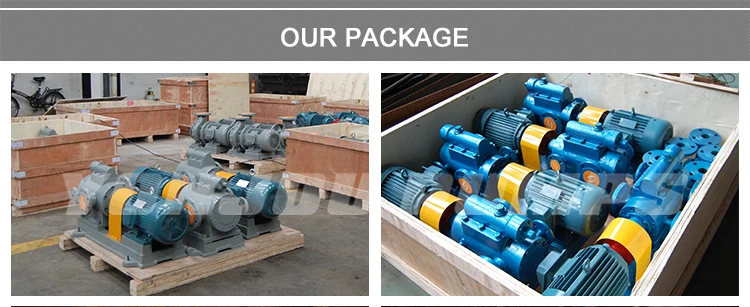

Packaging & Delivery
Packaging Details
LQ3G Screw Pump International Standard Plywood Case
Port
Ningbo,Shanghai
Lead Time :
Quantity(Sets) 1 - 1 2 - 7 8 - 30 >30
Est. Time(days) 7 15 30 To be negotiated
Video Description



Product Description

Summarize:



1. LQ3G Bitumen Emulsion Three Screw Pump with Heating Jacket for LPG Transfer, Three Screw Pump for oil, bitumen,asphalt pump  , can transmit heavy oil without particle, non-corrosive oil

2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.

3. It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.

4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.



Product details:

Working Principle: Three Screw (One main, two driven screws)
Main applications: Heavy Oil, bitumen, viscous fluids
Driver: Electric motor, diesel motor
Power Specs: 220V,240V,380V,400V,415V,440V,460V,50hz/60hz
Max. permissible fluid temperature: 350°C
Type of connection: Flange, Thread, Quick Coupled
Installation position: Horizontal
Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type: Mechanical seal
Maximum viscosity: 1000CST
Maximum drive rating: 90 kW
Maximum caliber: 6inch  (150mm)
Maximum discharge-side pressure: 2.5mpa (25bar)
Flow rate range: 4.5~250 m3/h

Performance Data:
Pump SizeFlow RatePressureRotate speedPower KWNPSHR
M3/hLPMMpaRPMShaft powerMotorM
LQ3G45×2-464.2871.280.69601.031.55
4.1468.9611.732.2
466.631.62.84
6.53108.80.614501.752.2
6.32105.312.613
6.1101.71.63.755.5
LQ3G60×2-469.89164.80.69602.3335
9.73162.20.82.914
9.56159.413.615.5
15.1251.60.614503.565.5
14.6243.315.517.5
LQ3G80×2-4616.8280.30.69603.55.55.5
16.3271.215.417.5
25.7427.80.614505.437.5
24.8413.918.5111
LQ3G90×2-4634.2570.30.69607.86115.5
34566.70.89.711
33.1551.7111.415
52.6876.40.614501215
528660.814.918.5
51.4856.1118.622
LQ3G100×2-4648.7812.20.696010.8155.5
48800.10.813.315
46.9782.3116.722
72.712120.6145016.518.5
7212000.820.422
71.21187125.530
LQ3G110×2-4660.910150.696013.718.55.5
58.9981.7121.830
96.716110.6145021.930
94.61577133.945
